Home /Rolair V5380K28 5 HP Two-Stage Vertical Air Compressor - 80 Gallon

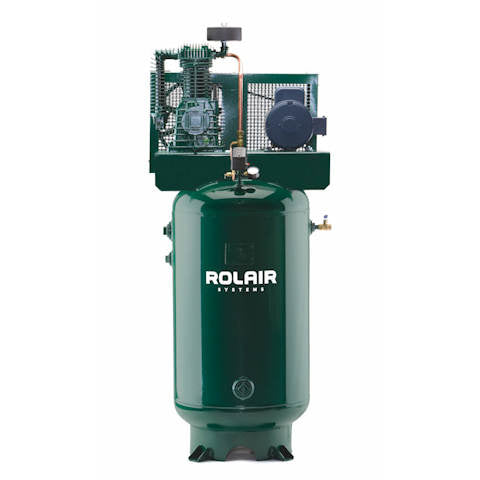

Rolair V5380K28 5 HP Two-Stage Vertical Air Compressor - 80 Gallon

Rolair

Rolair V5380K28 5 HP Two-Stage Vertical Air Compressor - 80 Gallon

MPN: V5380K28

$3,208.00
Direct Shipment from Manufacturer
Rolair V5380K28 — 5 HP Two-Stage Stationary Air Compressor The Rolair V5380K28 is a 5 HP, two-stage, three phase (208/230/460v) electric stationary air compressor mounted on a 80-gallon vertical ASME air receiver tank.
Free shipping on orders over $2,500
Manufacturer warranty included
Ships in 3-5 business days
Questions? (727) 900-5977
Accepted Payment Methods:
Shipping Policy | Return Policy | Warranty Info

Rolair V5380K28 — 5 HP Two-Stage Stationary Air Compressor

The Rolair V5380K28 is a 5 HP, two-stage, three phase (208/230/460v) electric stationary air compressor mounted on a 80-gallon vertical ASME air receiver tank. Delivering 15.3 CFM at 175 PSI, this unit is built for demanding shop and industrial applications.

Key Specifications

Horsepower 5 HP
Stage Two-Stage
Phase Three Phase (208/230/460V)
Tank Size 80 Gallons (Vertical)
CFM Displaced 20.6 CFM @ 175 PSI
CFM Delivered 15.3 CFM @ 175 PSI
Motor Speed 1740 RPM, 60 Hz
Dimensions (L×W×H) 30" × 24" × 75"
Shipping Weight 464 lb.

Pump Features

  • Two-Stage cast-iron cylinders
  • Aluminum head and crankcase for faster heat dissipation
  • Ball bearings throughout
  • Splash lubricated with oil sight gauge
  • Bearing inserts on connecting rods
  • Swedish lamellar reed valves
  • Low RPMs for long life and trouble-free performance

Standard Equipment

  • Pressure switch with start/stop operation and on/off switch
  • Automatic unloading device for loadless starts
  • Heavy-duty brass shut-off valve
  • Pressure gauge (0-300 PSI)
  • ASME-approved safety relief valve
  • Multiple V-belt drive with totally enclosed steel belt guard
  • Intake filter/silencer with replaceable element

Note: Three-phase models and single-phase models 5 HP and above include a magnetic starter.

Optional Equipment

  • Automatic tank drain
  • Low oil shutdown
  • Vibration pads
  • Dual controls
  • Head unloader
  • Refrigerant air dryer

Ships from manufacturer in Hustisford, Wisconsin. Rolair compressors are backed by a 1-year warranty and a network of over 400 service centers nationwide.
