Rolair

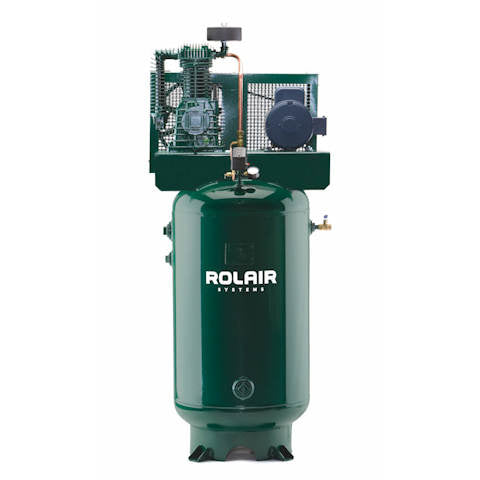

Rolair V5160K28 5 HP Two-Stage Vertical Air Compressor - 60 Gallon
MPN: V5160K28
$3,122.00
Direct Shipment from Manufacturer
Rolair V5160K28 — 5 HP Two-Stage Stationary Air Compressor
The Rolair V5160K28 is a 5 HP, two-stage, single phase (230v) electric stationary air compressor mounted on a 60-gallon vertical ASME air receiver tank.
Large items may ship by LTL freight. Where standard shipping or freight is stated as included, no separate standard shipping charge will be added. Special delivery services may incur additional charges.
Applicable manufacturer warranty
Assembled to order (~4 weeks)
Questions? (727) 900-5977
Accepted Payment Methods:
Rolair V5160K28 — 5 HP Two-Stage Stationary Air Compressor
The Rolair V5160K28 is a 5 HP, two-stage, single phase (230v) electric stationary air compressor mounted on a 60-gallon vertical ASME air receiver tank. Delivering 15.3 CFM at 175 PSI, this unit is built for demanding shop and industrial applications.
RECOMMENDED ADD-ON
Rolair K28LIFEKIT K28 Electric Stationary Compressor Life Kit
Includes 2 bottles of oil, 1 pump filter, and 1 set of 4 vibration pads.
View Start-Up KitKey Specifications
| Horsepower | 5 HP |
| Stage | Two-Stage |
| Phase | Single Phase (230V) |
| Tank Size | 60 Gallons (Vertical) |
| CFM Displaced | 20.6 CFM @ 175 PSI |
| CFM Delivered | 15.3 CFM @ 175 PSI |
| Motor Speed | 1740 RPM, 60 Hz |
| Dimensions (L×W×H) | 30" × 20" × 75" |
| Shipping Weight | 404 lb. |
Pump Features
- Two-Stage cast-iron cylinders
- Aluminum head and crankcase for faster heat dissipation
- Ball bearings throughout
- Splash lubricated with oil sight gauge
- Bearing inserts on connecting rods
- Swedish lamellar reed valves
- Low RPMs for long life and trouble-free performance
Standard Equipment
- Pressure switch with start/stop operation and on/off switch
- Automatic unloading device for loadless starts
- Heavy-duty brass shut-off valve
- Pressure gauge (0-300 PSI)
- ASME-approved safety relief valve
- Multiple V-belt drive with totally enclosed steel belt guard
- Intake filter/silencer with replaceable element
Note: Three-phase models and single-phase models 5 HP and above include a magnetic starter.
Optional Equipment
- Automatic tank drain
- Low oil shutdown
- Vibration pads
- Dual controls
- Head unloader
- Refrigerant air dryer
Ships from manufacturer in Hustisford, Wisconsin. Rolair compressors are backed by a 1-year warranty and a network of over 400 service centers nationwide.
Shipping & Delivery
Large items may ship by LTL freight. Where standard shipping or freight is stated as included, no separate standard shipping charge will be added. Special delivery services may incur additional charges.
Rolair Lead Time Notice
Rolair products are assembled to order. Please allow approximately four weeks for processing and assembly before shipment. Transit time is additional and begins once the product leaves the manufacturer. Lead times are estimates and may vary depending on the model and current factory workload.
Order Processing
~4 weeks assembly & processing
In Transit
2-5 business days shipping via freight carrier
Total Estimated Delivery
5-6 weeks from time of order
Depending on seasonality and availability, shipping times may vary. You will receive tracking information once your order has shipped. For questions about shipping to your area, please contact us at (727) 900-5977 or sales@caldwellair.com.
Warranty & Returns
Manufacturer Warranty
Products sold by Caldwell Air may be covered by the applicable manufacturer's limited warranty. Warranty terms vary by manufacturer, product line, model, and configuration. Caldwell Air will assist with warranty claims, but warranty approval, coverage, and remedies are determined by the manufacturer. For full details, see our Warranty Information.
Damaged or Defective Products
Freight damage and manufacturer warranty defects are handled separately. If concealed shipping damage is discovered after delivery, contact Caldwell Air immediately and no later than 48 hours after delivery. For assistance, call (727) 900-5977 or email sales@caldwellair.com.
Returns & Cancellations
All sales are final unless Caldwell Air approves a return or cancellation in writing. Approved returns require prior authorization and may be subject to manufacturer restocking, cancellation, freight, and other applicable charges. For complete terms, see our Shipping & Returns Policy.
Questions About This Product?
Our equipment specialists are happy to help you determine if this product is right for your application.
Call Us
(727) 900-5977
Monday - Friday, 8:00 AM - 5:00 PM EST
Email Us
sales@caldwellair.com
We respond within 24-48 hours on business days
We can also provide custom quotes for bulk orders or special configurations.
Rolair V5160K28 — 5 HP Two-Stage Stationary Air Compressor
The Rolair V5160K28 is a 5 HP, two-stage, single phase (230v) electric stationary air compressor mounted on a 60-gallon vertical ASME air receiver tank. Delivering 15.3 CFM at 175 PSI, this unit is built for demanding shop and industrial applications.
RECOMMENDED ADD-ON
Rolair K28LIFEKIT K28 Electric Stationary Compressor Life Kit
Includes 2 bottles of oil, 1 pump filter, and 1 set of 4 vibration pads.
View Start-Up KitKey Specifications
| Horsepower | 5 HP |
| Stage | Two-Stage |
| Phase | Single Phase (230V) |
| Tank Size | 60 Gallons (Vertical) |
| CFM Displaced | 20.6 CFM @ 175 PSI |
| CFM Delivered | 15.3 CFM @ 175 PSI |
| Motor Speed | 1740 RPM, 60 Hz |
| Dimensions (L×W×H) | 30" × 20" × 75" |
| Shipping Weight | 404 lb. |
Pump Features
- Two-Stage cast-iron cylinders
- Aluminum head and crankcase for faster heat dissipation
- Ball bearings throughout
- Splash lubricated with oil sight gauge
- Bearing inserts on connecting rods
- Swedish lamellar reed valves
- Low RPMs for long life and trouble-free performance
Standard Equipment
- Pressure switch with start/stop operation and on/off switch
- Automatic unloading device for loadless starts
- Heavy-duty brass shut-off valve
- Pressure gauge (0-300 PSI)
- ASME-approved safety relief valve
- Multiple V-belt drive with totally enclosed steel belt guard
- Intake filter/silencer with replaceable element
Note: Three-phase models and single-phase models 5 HP and above include a magnetic starter.
Optional Equipment
- Automatic tank drain
- Low oil shutdown
- Vibration pads
- Dual controls
- Head unloader
- Refrigerant air dryer
Ships from manufacturer in Hustisford, Wisconsin. Rolair compressors are backed by a 1-year warranty and a network of over 400 service centers nationwide.
